Sol-Ark-5K, All-in-One Inverter/Solar/Charger

$8,295.00
Sol-Ark-5K, All-in-One Inverter/Solar/Charger
Sol-Ark-5K, All-in-One Inverter/Solar/Charger
Sol-Ark-5K, All-in-One Inverter/Solar/Charger
Sol-Ark-5K, All-in-One Inverter/Solar/Charger
Sol-Ark-5K, All-in-One Inverter/Solar/Charger
Sol-Ark-5K, All-in-One Inverter/Solar/Charger

Home / Shop / Inverters / Battery Based Inverters / Off Grid Inverters

Sol-Ark-5K, All-in-One Inverter/Solar/Charger

$8,295.00
Model Number: 30-610
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
8295.000
Manufacturer: SOL-ARK
Facebook
X
Email
LinkedIn
  • Description
  • Specifications
  • Documents

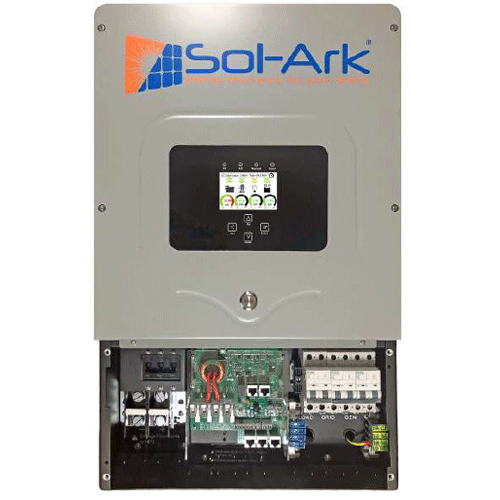

Sol-Ark 5K Hybrid Inverter/Charger Pre-Wired System

This all-in-one 5kW hybrid inverter system from Sol-Ark incorporates a battery-based inverter, charge controller, display with remote monitoring, auto generator start, load center with breakers, rapid shutdown, and WiFi connectivity all into one pre-wired system enclosed in a single outdoor-rated housing. The Sol-Ark 5K Hybrid Inverter System has it all.

This hybrid inverter system simultaneously manages power to and from a solar PV array, a battery bank, the grid, a backup generator, and your loads. It supports 5kW of continuous power for off-grid production, and up to 5kW continuous for grid-tied production.

Being pre-wired with so many system components already integrated, Sol-Ark's hybrid inverters make a great choice - and an easy installation - for single-family sized off-grid, grid-tie, or battery backup solar installations (for larger systems, use the Sol-Ark 12Ks, which can be combined for up to 8 units stacked in parallel).

In addition to the easy installation of the single pre-wired housing, Sol-Ark has also excelled in the area of PV-to-AC efficiency, boasting a CEC-weighted efficiency of 96% (peak performance up to 97%) - meaning a smaller solar array can be used to get the same amount of power as systems with other inverters.

FEATURES:
  • Grid-Interactive or Off-Grid capability in the same package - can be used with or without energy storage - add batteries down the line  (The unit can be used in grid-tied applications without batteries, but if there is an outage, and there are no batteries, the inverter shuts down per NEC).
  • Easy and fast to install - no external components (ie. fuses, breakers, combiner box) - all integrated in one unit
  • Indoor/Outdoor installations
  • Lightweight - under 80 lbs
  • Color touch screen
  • Works with the widest variety of 48V battery chemistries - from lead acid to lithium
  • Backup power (even use the Grid as backup!) and support for time-of-use optimization
  • Completely pre-wired system - inverter and charge controller included
  • Wifi integrated for easy monitoring of system performance
  • Integrated DC Disconnect, Auto Gen Start, Critical Loads panel
  • Highly efficient - both on-grid and off-grid
  • Generator support
  • Field-upgradeable software with remote support
  • Fully NEC compliant (N. America) with rapid shutdown
  • UL1741SA/Rule 21 and 14H Compliant (Grid Sell Only)
APPLICATIONS:
  • Grid-Tied Mode - Sell power back to the Utility to reduce your electric bill*
  • Meter Zero Mode - Zero your electric bill without adding an additional smart meter
  • Time-Of-Use Mode - Use solar and batteries to minimize grid power usage when it's most expensive
  • Smart Load Mode - Use a programmable output for high-power off grid loads or grid Time-of-use loads - to run only when there is optimum solar - use excess PV power when batteries are full
  • Off Grid applications - battery agnostic
  • AC Coupling - retrofits to existing grid tie systems
  • Battery backup applications

Model Number

Sol-Ark-5K

Output voltage nominal

120/240V

Output continuous

5000W

Output surge

16,000W (10sec), 25,000W (100ms)

Output wave form

Pure Sine Wave

Input Voltage (DC)

48V

Solar continuous output

5000W

Max PV Voltage (Voc)

500V

Max Usable PV Current

2x10A

PV Starting Voltage

125V

Number of MPPT

2

Max AC-Coupled Input

9600W

Idle Power

60W

Search

-

Typical Efficiency

96.5%

Battery Charge Output

120A

Min. operating temperature

-25C

Weight (Shipping weight)

78lbs

Dimensions (l x w x h)

30" x 18.3" x 10"

Warranty

5 years
