Deltec 500A/50mV Shunt

$55.00
Model Number: 28-500
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
55.000
Categories: Meters/Monitors
Manufacturer: Deltec
Facebook
Twitter
Email
LinkedIn
  • Description

Shunt - 500A, 50 mV

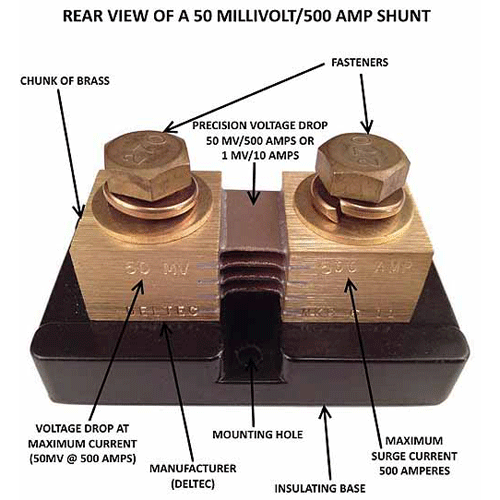

This Deltec shunt is the industry standard for systems with a continuous maximum current of 400 amps with no overloads, or 300 amps with up to 5-minute overloads of up to 500 amps. Like all shunts, it is a low-resistance precision resistor that is wired in series with the load you want to measure, producing a small voltage that meters and monitors (like MidNite's Whiz Bang Jr, available separately above) can read and convert to an amperage reading.

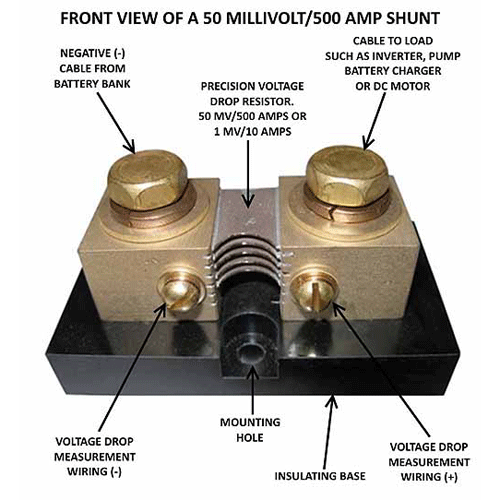

Features two mounting holes of .205" diameter, 1.25" apart. High-current connections are made to two bolts (3/8"-16) which are 1.5" apart (center to center).
